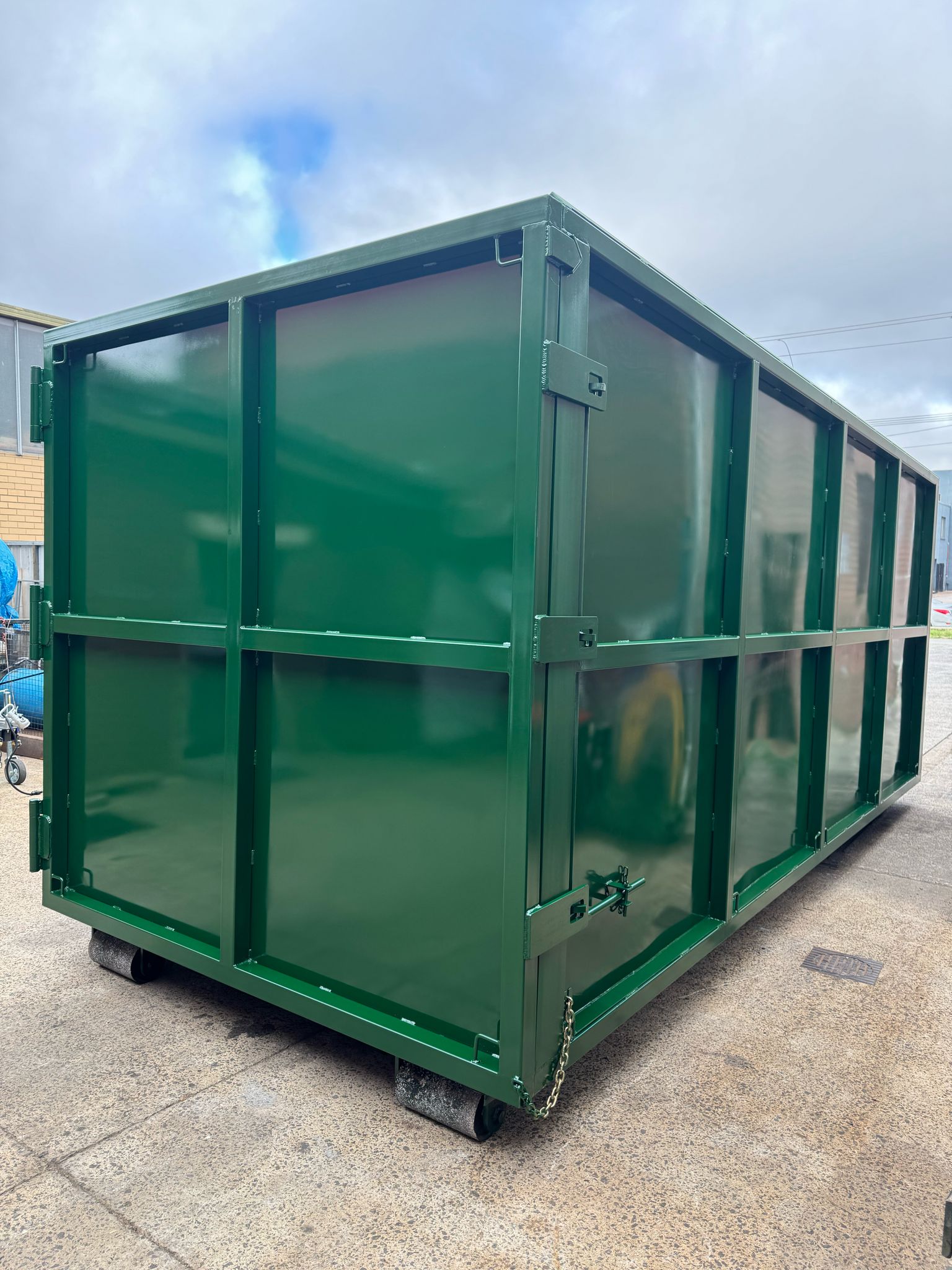

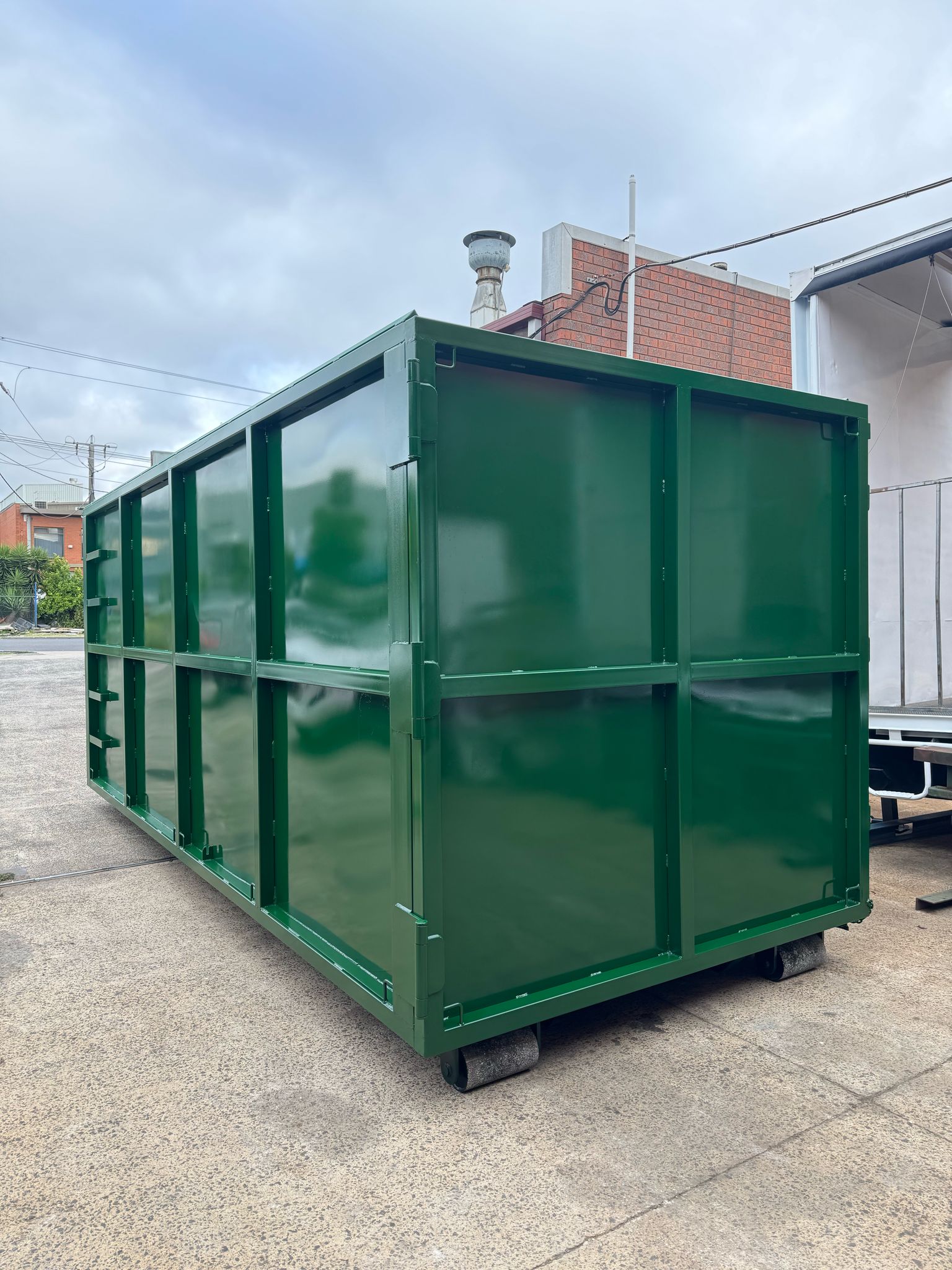

Universal Metal Fabrication’s heavy-duty hook bins are the epitome of durability and functionality, engineered to withstand the toughest environments and handle the heaviest loads with ease. These robust bins are designed to streamline material handling processes in industrial and commercial settings, providing a secure and efficient solution for storing and transporting heavy items.

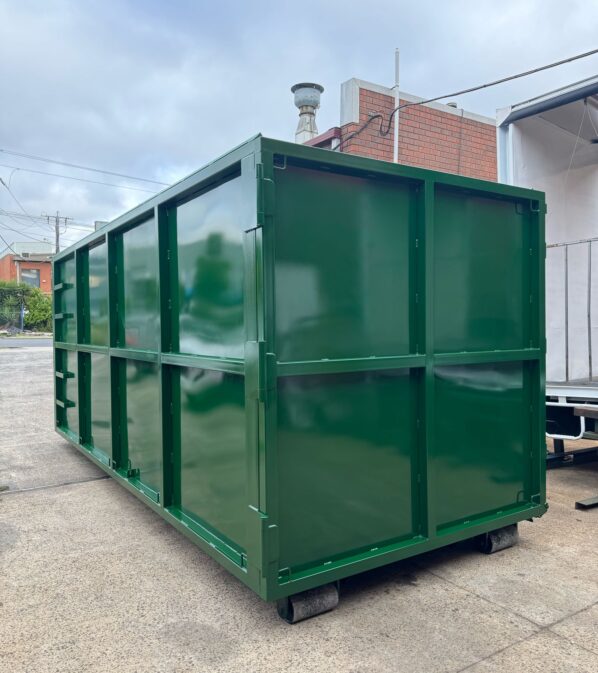

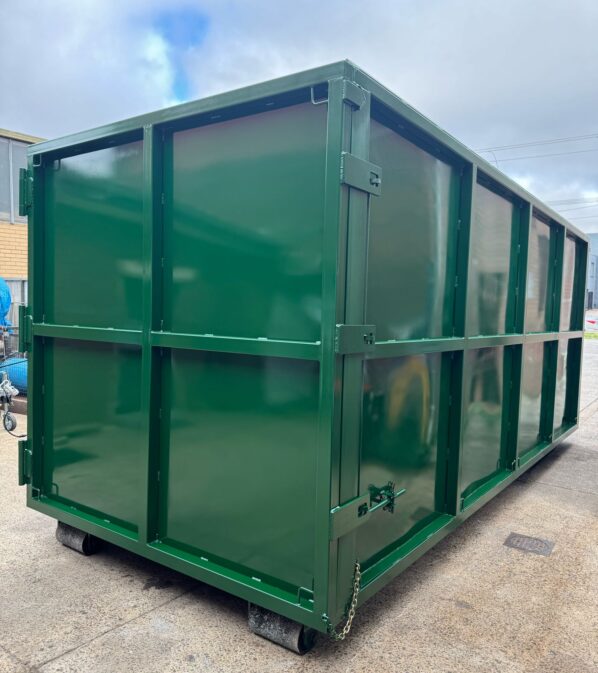

Crafted from high-quality, industrial-grade steel, Universal Metal Fabrication’s heavy-duty hook bins are built to last. With reinforced corners, sturdy sidewalls, and a rugged hook attachment, these bins are capable of withstanding the rigors of heavy-duty use, including frequent loading and unloading, transportation, and stacking.

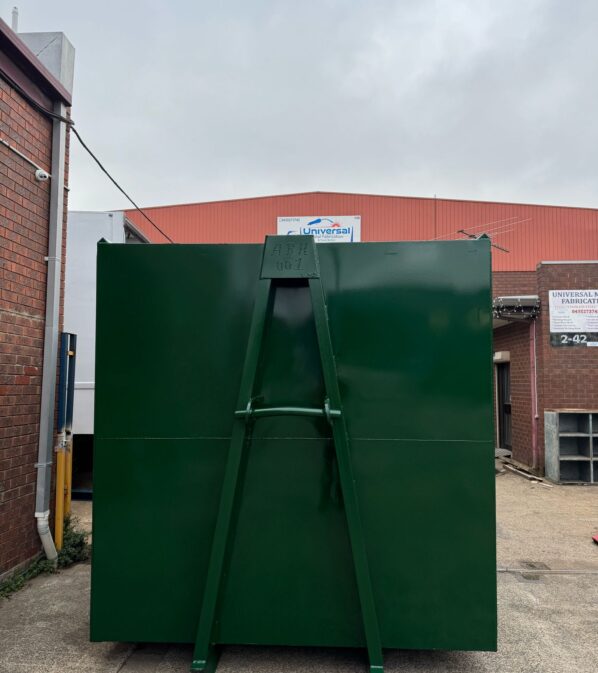

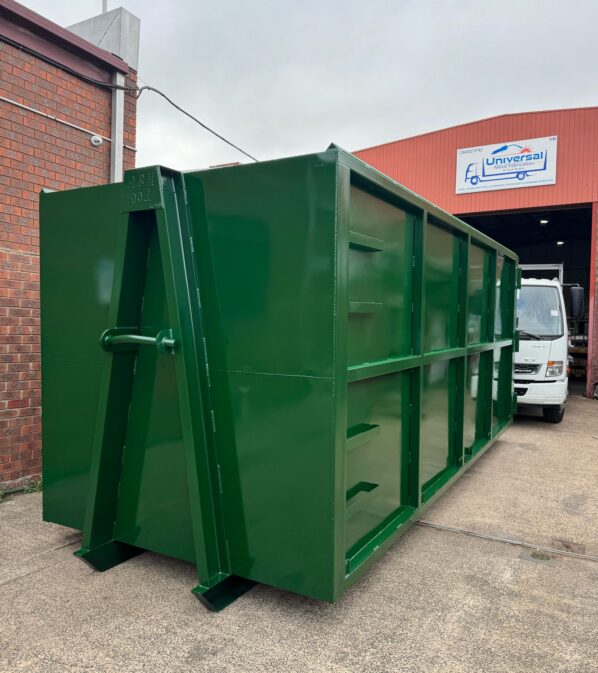

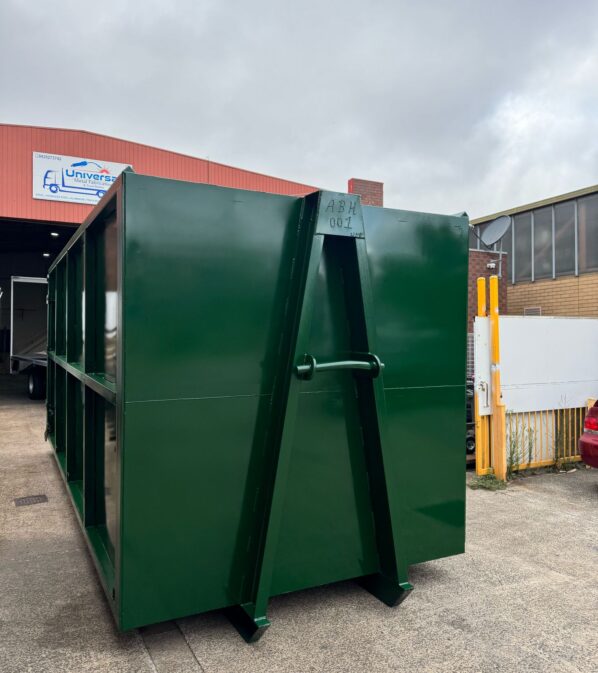

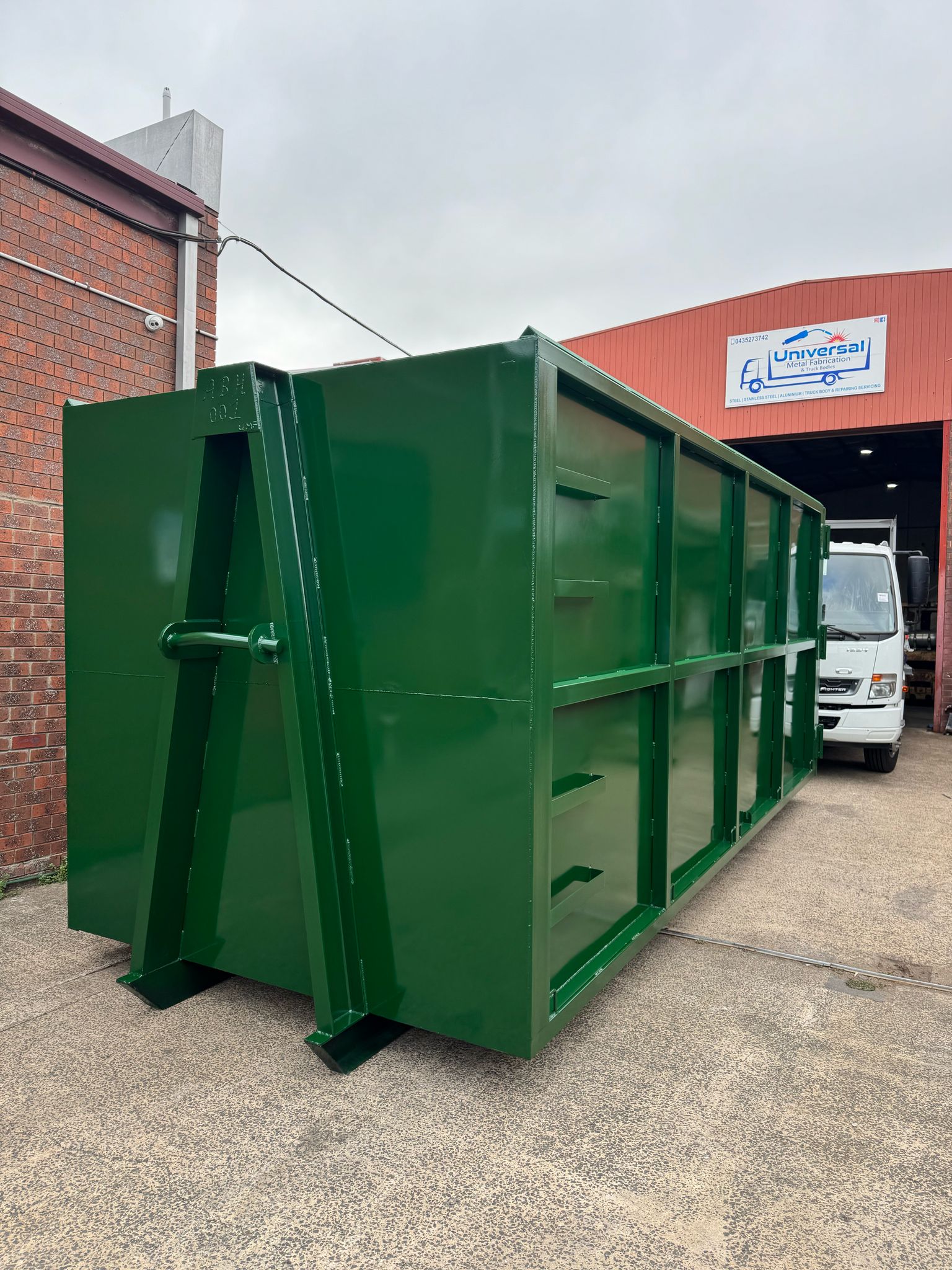

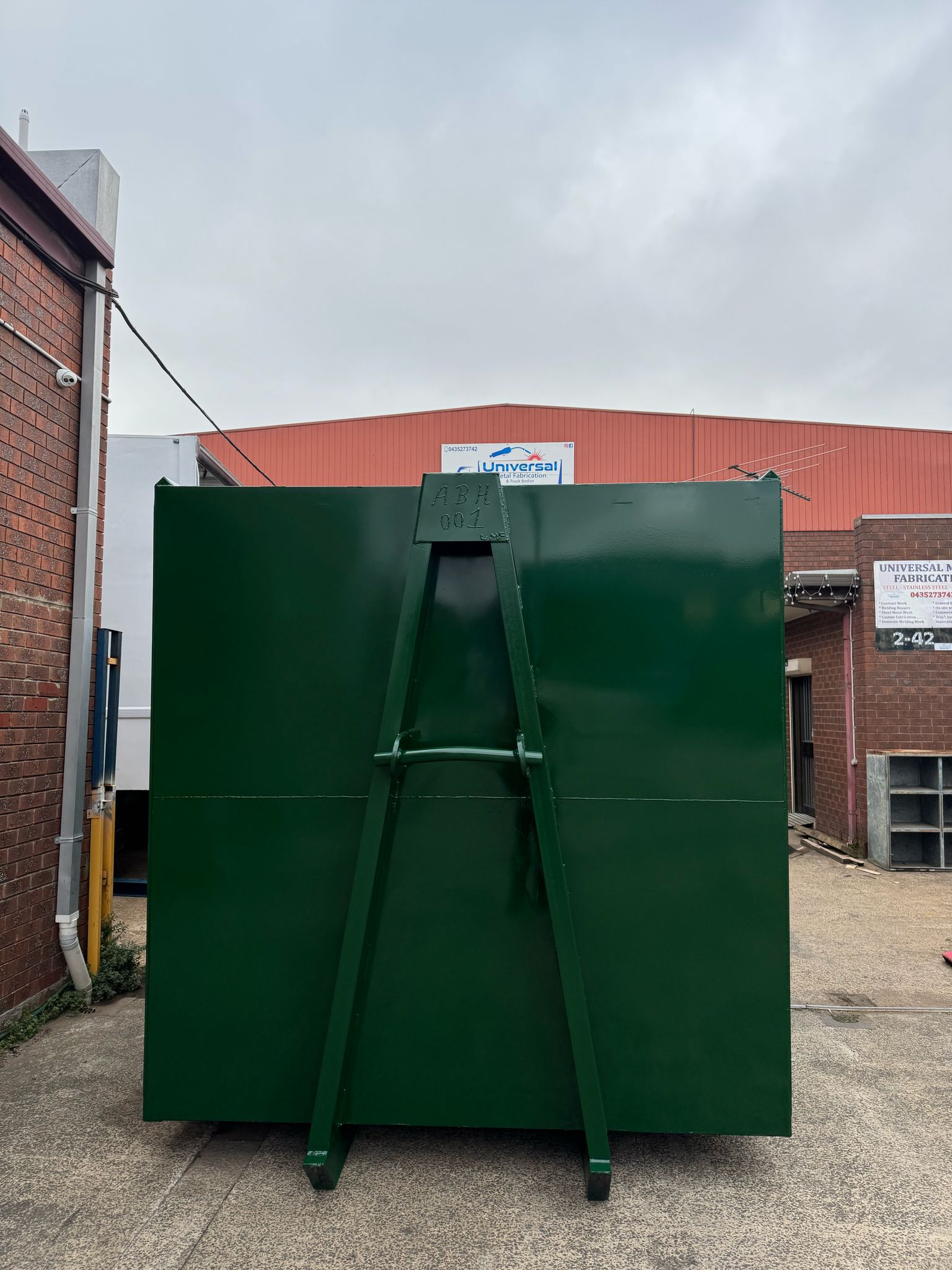

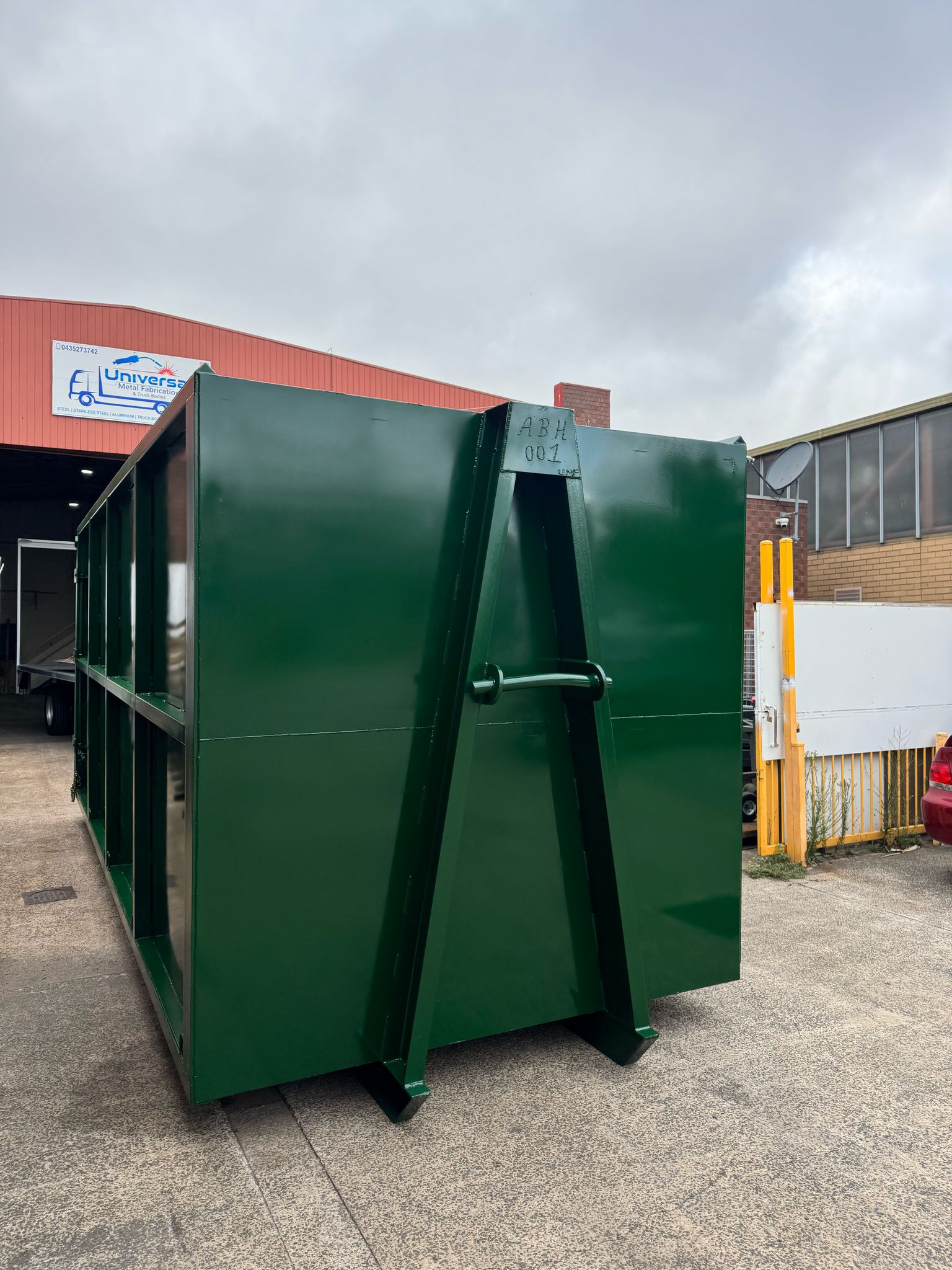

The design of Universal Metal Fabrication’s heavy-duty hook bins prioritizes both practicality and safety. Featuring a low-profile design for easy access and a spacious interior for maximum capacity, these bins are optimized for efficiency in material handling operations. The heavy-duty hook attachment ensures secure anchoring to overhead cranes or hoists, allowing for safe and precise movement of the bins within the facility.
Hook Lift Bin Specifications :
Description | Weight(Kgs) | Plates | A frame | Bottom rails | ||||||
Internal size(L*W*H)(mm) | Side(mm) | Floor(mm) | ||||||||
6M | 1630 | Fabricated | 3600*2010*840 | 5 | 5 | 220 PFC | 200 PFC | |||
8M | 1880 | Fabricated | 4500*2010*885 | 5 | 5 | 220 PFC | 200 PFC | |||
10M | 2080 | Fabricated | 5100*2010*990 | 5 | 5 | 220 PFC | 200 PFC | |||
12M | 2250 | Fabricated | 5400*2010*1125 | 5 | 5 | 220 PFC | 200 PFC | |||
15M | 2500 | Fabricated | 5400*2010*1400 | 5 | 5 | 220 PFC | 200 PFC | |||
20M | 2930 | Fabricated | 5600*2010*1800 | 5 | 5 | 220 PFC | 200 PFC | |||
25M | 3330 | Fabricated | 5600*2010*2225 | 5 | 5 | 220 PFC | 200 PFC | |||
30M | 3650 | Fabricated | 6660*2010*2225 | 5 | 5 | 220 PFC | 200 PFC |
